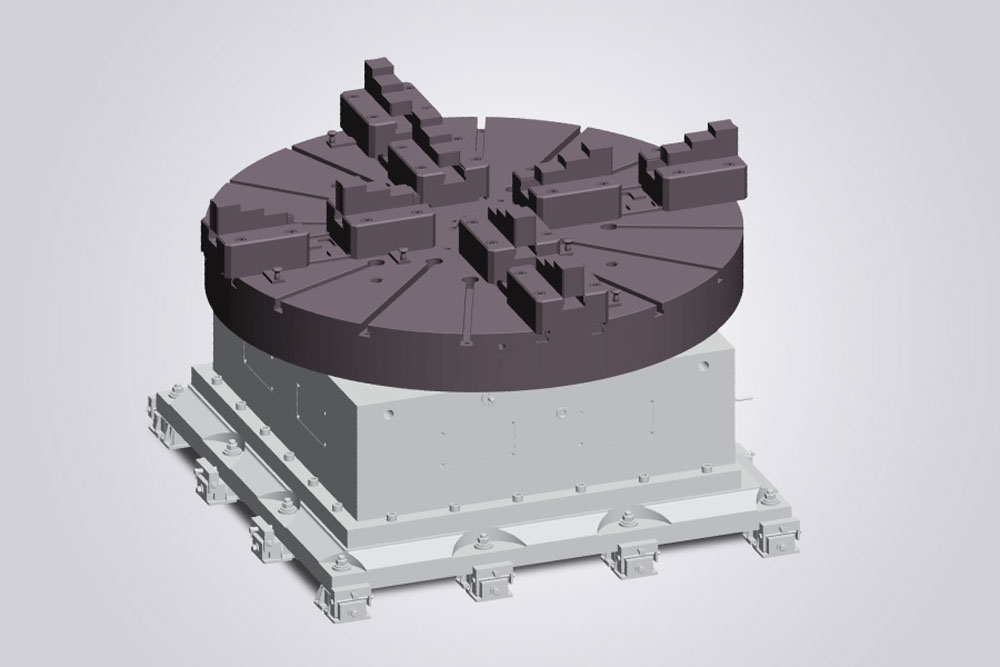

反摩擦力安装/力矩电机驱动器 TRT400 Table sizes mm 600 | 700 | 800 Max. centric load capacity up to kg 2,000 Anti-friction mounting     Bearing diameter mm 400 Safe max, tilting Torque up to Nm 19,000 Torque motor drive 1     Nominal Speed bis zu RPM 265 Nominal torque up to Nm 1,650 Max. speed up to RPM 650 Locking system     Tangential Torque up to Nm 5,500 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,01 Truth of running 4 mm 0,01 TRT500 Table sizes mm 700 | 800 | 1,000 Max. centric load capacity up to kg 3,000 Anti-friction mounting     Bearing diameter mm 460 Safe max, tilting Torque up to Nm 27,000 Torque motor drive 1     Nominal Speed bis zu RPM 250 Nominal torque up to Nm 2,800 Max. speed up to RPM 500 Locking system     Tangential Torque up to Nm 12,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,01 Truth of running 4 mm 0,01 TRT650 Table sizes mm 1,000 | 1,250 | 1,500 Max. centric load capacity up to kg 6,000 Anti-friction mounting     Bearing diameter mm 650 Safe max, tilting Torque up to Nm 45,000 Torque motor drive 1     Nominal Speed bis zu RPM 200 Nominal torque up to Nm 3,800 Max. speed up to RPM 400 Locking system     Tangential Torque up to Nm 20,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,015 Truth of running 4 mm 0,01 TRT800 Table sizes mm 1,250 | 1,500 | 1,800 Max. centric load capacity up to kg 10,000 Anti-friction mounting     Bearing diameter mm 850 Safe max, tilting Torque up to Nm 70,000 Torque motor drive 1     Nominal Speed bis zu RPM 150 Nominal torque up to Nm 6,500 Max. speed up to RPM 300 Locking system     Tangential Torque up to Nm 25,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,02 Truth of running 4 mm 0,01 TRT1000 Table sizes mm 1,500 | 1,800 | 2,000 Max. centric load capacity up to kg 15,000 Anti-friction mounting     Bearing diameter mm 1,050 Safe max, tilting Torque up to Nm 100,000 Torque motor drive 1     Nominal Speed bis zu RPM 75 Nominal torque up to Nm 10,000 Max. speed up to RPM 200 Locking system     Tangential Torque up to Nm 30,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,02 Truth of running 4 mm 0,01

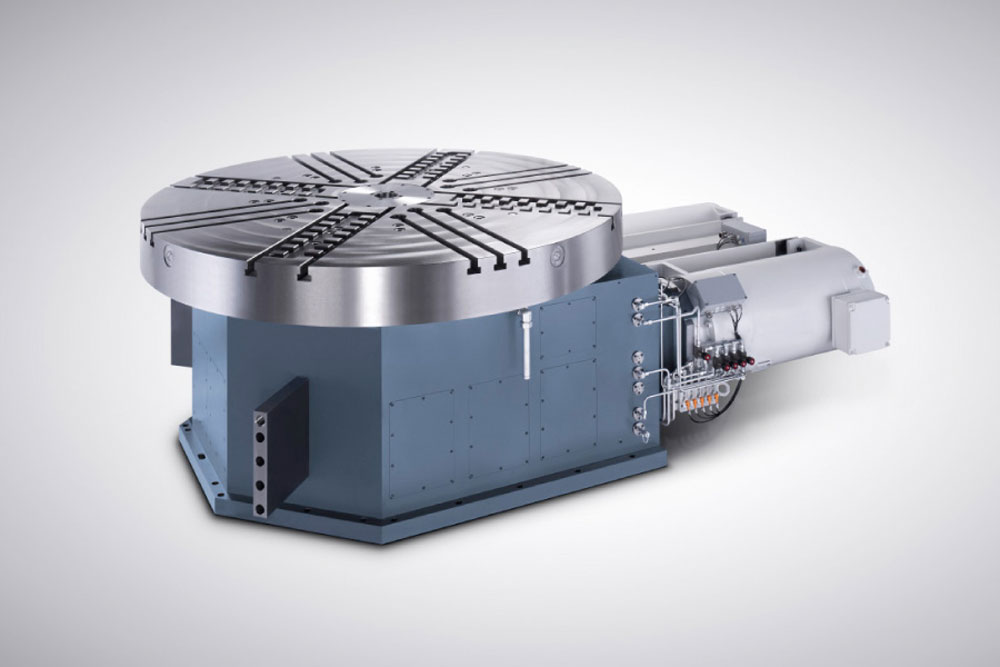

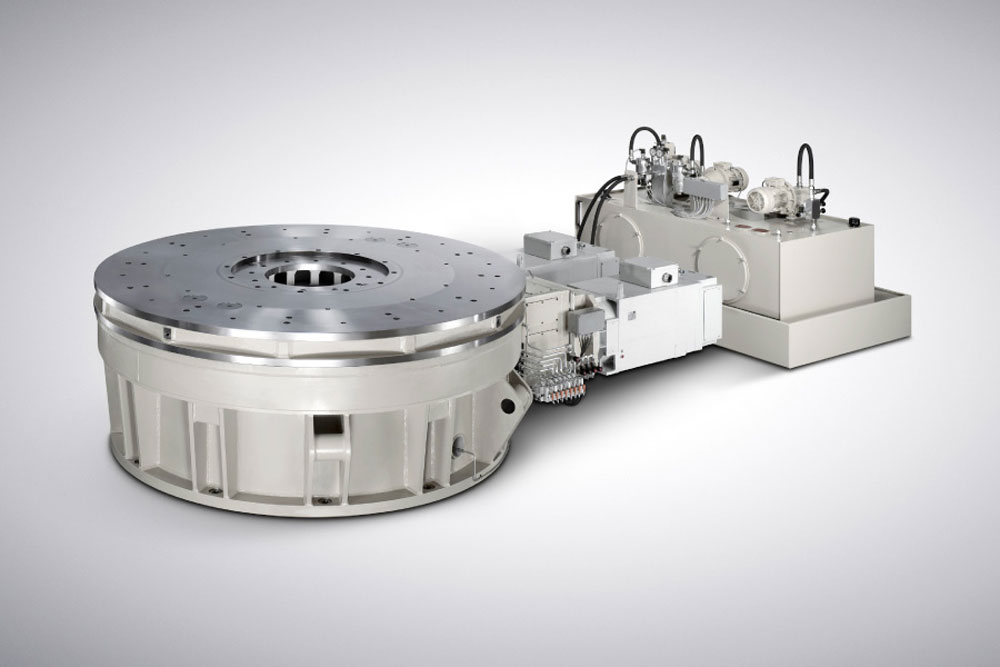

静压轴承/齿轮传动 TRT1000 Table sizes mm 1,500 | 1,800 | 2,000 Max. centric load capacity up to kg 15,000 Hydrostatic bearing     Bearing diameter mm 1,000 Safe max, tilting Torque up to Nm 100,000 Drive gear 1     Engine output up to KW 2 × 71 Max. speed up to RPM 250 Max. torque available up to Nm 45,000 Locking system     Tangential Torque up to Nm 30,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,02 Truth of running 4 mm 0,01 TRT1400 Table sizes mm 2,000 | 2,500 | 3,000 Max. centric load capacity up to kg 30,000 Hydrostatic bearing     Bearing diameter mm 1,400 Safe max, tilting Torque up to Nm 180,000 Drive gear 1     Engine output up to KW 2 × 100 Max. speed up to RPM 200 Max. torque available up to Nm 85,000 Locking system     Tangential Torque up to Nm 40,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,02 Truth of running 4 mm 0,01 TRT2000 Table sizes mm 2,500 | 3,000 | 4,000 Max. centric load capacity up to kg 60,000 Hydrostatic bearing     Bearing diameter mm 2,000 Safe max, tilting Torque up to Nm 280,000 Drive gear 1     Engine output up to KW 2 × 100 Max. speed up to RPM 150 Max. torque available up to Nm 125,000 Locking system     Tangential Torque up to Nm 60,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,02 Truth of running 4 mm 0,01 TRT2800 Table sizes mm 3,500 | 4,000 | 5,000 Max. centric load capacity up to kg 125,000 Hydrostatic bearing     Bearing diameter mm 2,800 Safe max, tilting Torque up to Nm 400,000 Drive gear 1     Engine output up to KW 2 × 100 Max. speed up to RPM 100 Max. torque available up to Nm 165,000 Locking system     Tangential Torque up to Nm 100,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,025 Truth of running 4 mm 0,01 TRT4000 Table sizes mm 4,500 | 5,500 | 6,500 Max. centric load capacity up to kg 250,000 Hydrostatic bearing     Bearing diameter mm 3,900 Safe max, tilting Torque up to Nm 520,000 Drive gear 1     Engine output up to KW 2 × 120 Max. speed up to RPM 75 Max. torque available up to Nm 330,000 Locking system     Tangential Torque up to Nm 150,000 Accuracy     Dividing accuracy 2 arcsec +/- 2 Lateral runout 3 mm 0,03 Truth of running 4 mm 0,01
