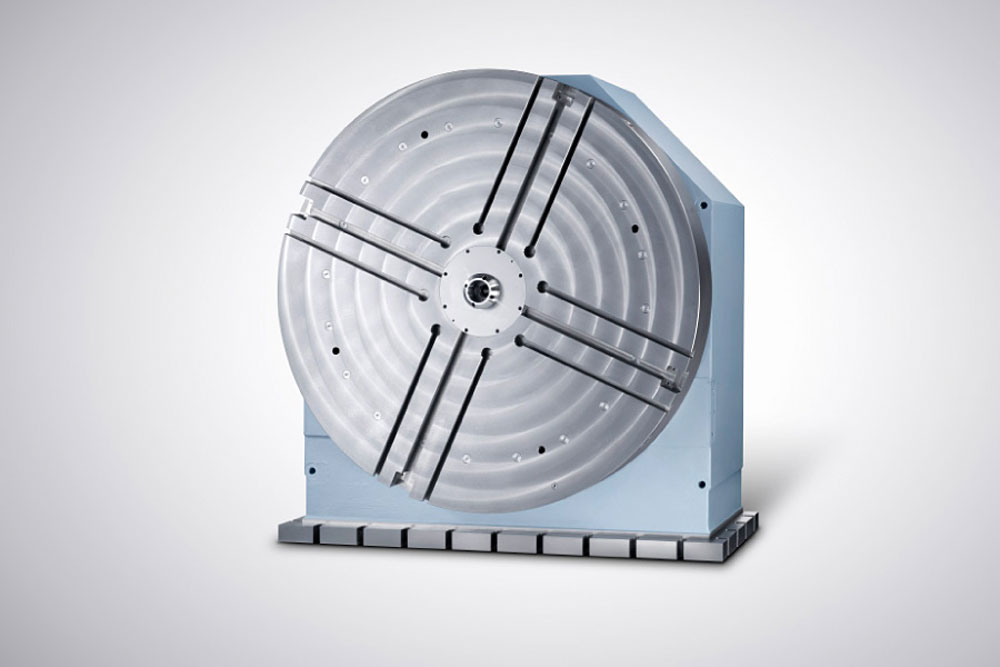

| Table sizes |
mm |
1,400 | 1,600 | 1,800 |
| Load capacity, vertical rotation axis |
kg |
25,000 | 30,000 |
| Load capacity, horizontal rotation axis 1 |
kg |
10,000 | — |
Mounting features |
|
|
| Bearing diameter |
mm |
1,000 |
| Safe max, tilting Torque up to |
Nm |
70,000 | 80,000 |
Drive gear 2 |
|
|
| Max. speed S6 up to |
RPM |
9 |
| Max. torque S6 up to |
Nm |
18,000 |
Locking system |
|
|
| Tangential Torque up to |
Nm |
35,000 |
Accuracy |
|
|
| Dividing accuracy 3 |
arcsec |
+/- 2 |
| Lateral runout |
mm |
0,015 |
| Truth of running 4 |
mm |
0,01 |
|
| Table sizes |
mm |
1,600 | 2,000 | 2,500 |
| Load capacity, vertical rotation axis |
kg |
35,000 | 45,000 |
| Load capacity, horizontal rotation axis 1 |
kg |
15,000 | — |
Mounting features |
|
|
| Bearing diameter |
mm |
1,250 |
| Safe max, tilting Torque up to |
Nm |
160,000 | 180,000 |
Drive gear 2 |
|
|
| Max. speed S6 up to |
RPM |
8 |
| Max. torque S6 up to |
Nm |
23,000 |
Locking system |
|
|
| Tangential Torque up to |
Nm |
40,000 |
Accuracy |
|
|
| Dividing accuracy 3 |
arcsec |
+/- 2 |
| Lateral runout |
mm |
0,02 |
| Truth of running 4 |
mm |
0,01 |
|
| Table sizes |
mm |
2,000 | 2,500 | 3,000 |
| Load capacity, vertical rotation axis |
kg |
60,000 | 70,000 |
| Load capacity, horizontal rotation axis 1 |
kg |
30,000 | — |
Mounting features |
|
|
| Bearing diameter |
mm |
1,600 |
| Safe max, tilting Torque up to |
Nm |
220,000 | 240,000 |
Drive gear 2 |
|
|
| Max. speed S6 up to |
RPM |
6 |
| Max. torque S6 up to |
Nm |
28,000 |
Locking system |
|
|
| Tangential Torque up to |
Nm |
60,000 |
Accuracy |
|
|
| Dividing accuracy 3 |
arcsec |
+/- 2 |
| Lateral runout |
mm |
0,025 |
| Truth of running 4 |
mm |
0,01 |
|
| Table sizes |
mm |
2,500 | 3,000 | 3,500 |
| Load capacity, vertical rotation axis |
kg |
100,000 | 120,000 |
| Load capacity, horizontal rotation axis 1 |
kg |
— | — |
Mounting features |
|
|
| Bearing diameter |
mm |
2,000 |
| Safe max, tilting Torque up to |
Nm |
280,000 | 310,000 |
Drive gear 2 |
|
|
| Max. speed S6 up to |
RPM |
5 |
| Max. torque S6 up to |
Nm |
35,000 |
Locking system |
|
|
| Tangential Torque up to |
Nm |
90,000 |
Accuracy |
|
|
| Dividing accuracy 3 |
arcsec |
+/- 2 |
| Lateral runout |
mm |
0,035 |
| Truth of running 4 |
mm |
0,01 |
|
| Table sizes |
mm |
3,000 | 3,500 | 4,000 |
| Load capacity, vertical rotation axis |
kg |
150,000 | 180,000 |
| Load capacity, horizontal rotation axis 1 |
kg |
— | — |
Mounting features |
|
|
| Bearing diameter |
mm |
2,600 |
| Safe max, tilting Torque up to |
Nm |
350,000 | 400,000 |
Drive gear 2 |
|
|
| Max. speed S6 up to |
RPM |
4 |
| Max. torque S6 up to |
Nm |
40,000 |
Locking system |
|
|
| Tangential Torque up to |
Nm |
120,000 |
Accuracy |
|
|
| Dividing accuracy 3 |
arcsec |
+/- 2 |
| Lateral runout |
mm |
0,05 |
| Truth of running 4 |
mm |
0,01 |
|
| Table sizes |
mm |
3,500 | 4,000 | 4,500 |
| Load capacity, vertical rotation axis |
kg |
220,000 | 260,000 |
| Load capacity, horizontal rotation axis 1 |
kg |
— | — |
Mounting features |
|
|
| Bearing diameter |
mm |
3,200 |
| Safe max, tilting Torque up to |
Nm |
420,000 | 480,000 |
Drive gear 2 |
|
|
| Max. speed S6 up to |
RPM |
1.5 |
| Max. torque S6 up to |
Nm |
60,000 |
Locking system |
|
|
| Tangential Torque up to |
Nm |
150,000 |
Accuracy |
|
|
| Dividing accuracy 3 |
arcsec |
+/- 2 |
| Lateral runout |
mm |
0.06 |
| Truth of running 4 |
mm |
0.01 |
|
|

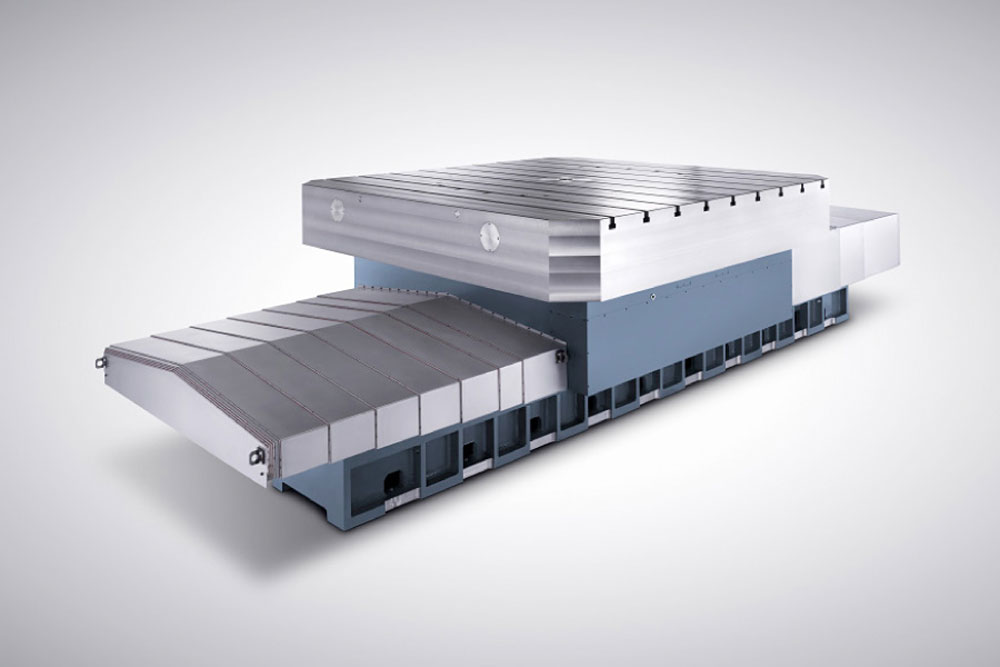

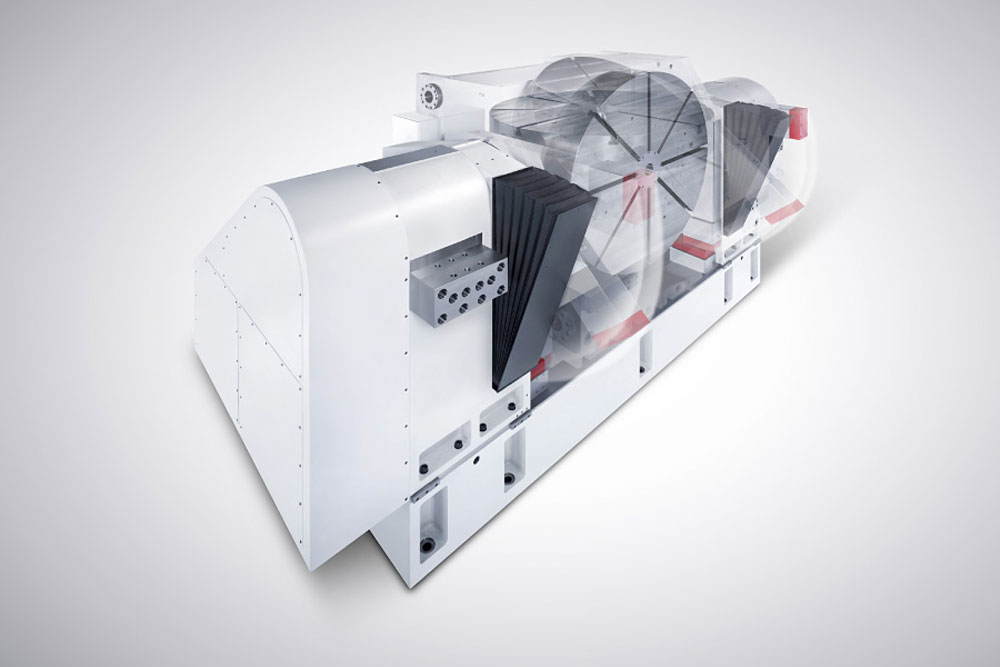

| Travel |
mm |
1,000 | 1,500 | 2,000 | 2,500 |
Mounting features |
|
|
| Number of LM guides |
Stk, |
2 |
| Size of LM guides / LM blocks |
|
55 |
Gearing/ball screw and nut assembly drive 2 |
| Speed |
m/min |
20 |
| Feed force |
N |
25,000 |
Accuracy |
|
|
| Position uncertainty P |
µm |
7 |
| Position deviation Pa |
µm |
5 |
|
| Travel |
mm |
1,000 | 1,500 | 2,000 | 2,500 |
Mounting features |
|
|
| Number of LM guides |
Stk, |
2 |
| Size of LM guides / LM blocks |
|
65 |
Gearing/ball screw and nut assembly drive 2 |
| Speed |
m/min |
20 |
| Feed force |
N |
25,000 |
Accuracy |
|
|
| Position uncertainty P |
µm |
7 |
| Position deviation Pa |
µm |
5 |
|
| Travel |
mm |
1,000 | 1,500 | 2,000 | 2,500 |
Mounting features |
|
|
| Number of LM guides |
Stk, |
3 |
| Size of LM guides / LM blocks |
|
65 |
Gearing/ball screw and nut assembly drive 2 |
| Speed |
m/min |
20 |
| Feed force |
N |
25,000 |
Accuracy |
|
|
| Position uncertainty P |
µm |
7 |
| Position deviation Pa |
µm |
5 |
|
| Travel |
mm |
1,000 | 1,500 | 2,000 | 2,500 |
Mounting features |
|
|
| Number of LM guides |
Stk, |
4 |
| Size of LM guides / LM blocks |
|
65 |
Gearing/ball screw and nut assembly drive 2 |
| Speed |
m/min |
15 |
| Feed force |
N |
25,000 |
Accuracy |
|
|
| Position uncertainty P |
µm |
7 |
| Position deviation Pa |
µm |
5 |
|
| Travel |
mm |
1,000 | 1,500 | 2,000 | 2,500 |
Mounting features |
|
|
| Number of LM guides |
Stk, |
4 |
| Size of LM guides / LM blocks |
|
65 |
Gearing/ball screw and nut assembly drive 2 |
| Speed |
m/min |
12 |
| Feed force |
N |
25,000 |
Accuracy |
|
|
| Position uncertainty P |
µm |
7 |
| Position deviation Pa |
µm |
5 |
|
| Travel |
mm |
1,000 | 1,500 | 2,000 | 2,500 |
Mounting features |
|
|
| Number of LM guides |
Stk, |
4 |
| Size of LM guides / LM blocks |
|
65 |
Gearing/ball screw and nut assembly drive 2 |
| Speed |
m/min |
10 |
| Feed force |
N |
25,000 |
Accuracy |
|
|
| Position uncertainty P |
µm |
7 |
| Position deviation Pa |
µm |
5 |
|
|
